Calibration of a catchment using multisite multiobjective composition¶

Use case¶

This vignette demonstrates how one can calibrate a catchment using multiple gauging points available within this catchment. This only covers the definition of the calibration, not the execution. The sample data in the package is a small subset of hourly data to keep things (data size, execution time) small.

This is a joint calibration weighing multiple objectives, possibly sourced from different modelling objects in the semi-distributed structure, thus a whole-of-catchment calibration technique. A staged, cascading calibration is supported and described in another vignette.

In [1]:

from swift2.utils import mk_full_data_id
from swift2.classes import CompositeParameteriser, HypercubeParameteriser, Simulation
# from swift2.wrap.ffi_interop import debug_msd
import xarray as xr
import pandas as pd
import numpy as np
import xarray as xr

from swift2.utils import mk_full_data_id from swift2.classes import CompositeParameteriser, HypercubeParameteriser, Simulation # from swift2.wrap.ffi_interop import debug_msd import xarray as xr import pandas as pd import numpy as np import xarray as xr

In [ ]:

In [2]:

import swift2.doc_helper as std

import swift2.doc_helper as std

In [3]:

import seaborn as sns
import matplotlib.pyplot as plt

import seaborn as sns import matplotlib.pyplot as plt

In [4]:

from cinterop.timeseries import TIME_DIMNAME, slice_xr_time_series, pd_series_to_xr_series, slice_xr_time_series, pd_series_to_xr_series

from cinterop.timeseries import TIME_DIMNAME, slice_xr_time_series, pd_series_to_xr_series, slice_xr_time_series, pd_series_to_xr_series

In [5]:

from cinterop.timeseries import xr_ts_start, xr_ts_end
import datetime as dt

from cinterop.timeseries import xr_ts_start, xr_ts_end import datetime as dt

In [6]:

%matplotlib inline

%matplotlib inline

Data¶

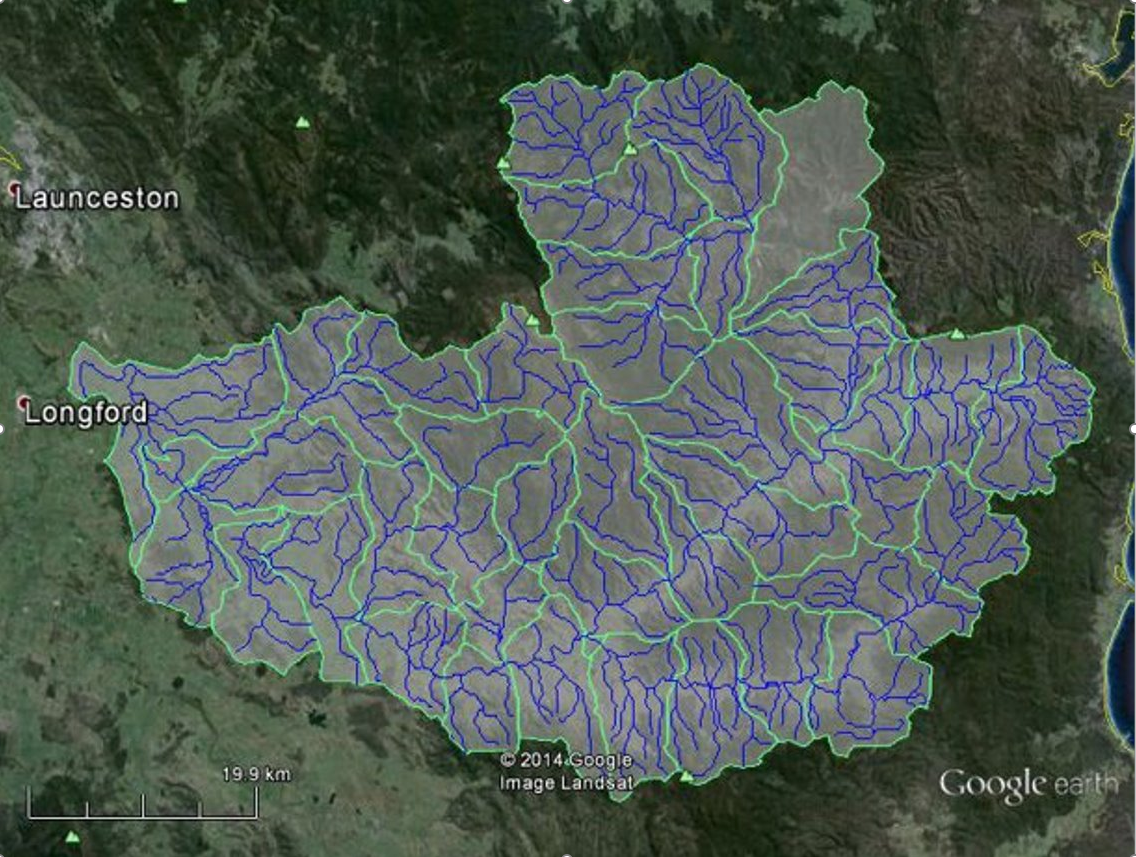

The sample data that comes with the package contains a model definition for the South Esk catchment, including a short subset of the climate and flow record data.

In [7]:

model_id = 'GR4J'
site_id = 'South_Esk'

model_id = 'GR4J' site_id = 'South_Esk'

In [8]:

se_climate = std.sample_series(site_id=site_id, var_name='climate')
se_flows = std.sample_series(site_id=site_id, var_name='flow')

se_climate = std.sample_series(site_id=site_id, var_name='climate') se_flows = std.sample_series(site_id=site_id, var_name='flow')

In [9]:

se_climate.head(3)

se_climate.head(3)

Out[9]:

	subcatchment.1.E	subcatchment.1.P	subcatchment.10.E	subcatchment.10.P	subcatchment.11.E	subcatchment.11.P	subcatchment.12.E	subcatchment.12.P	subcatchment.13.E	subcatchment.13.P	...	subcatchment.5.E	subcatchment.5.P	subcatchment.6.E	subcatchment.6.P	subcatchment.7.E	subcatchment.7.P	subcatchment.8.E	subcatchment.8.P	subcatchment.9.E	subcatchment.9.P
2010-11-01 00:00:00	0.3918	0.0	0.4020	0.0000	0.3978	0.0000	0.4266	0.0000	0.3936	0.0000	...	0.4325	0.0	0.4110	0.0322	0.4247	0.0	0.4377	0.0	0.4337	0.0
2010-11-01 01:00:00	0.4385	0.0	0.4493	0.0207	0.4446	0.0433	0.4763	0.0179	0.4397	0.0555	...	0.4823	0.0	0.4593	0.0000	0.4746	0.0	0.4892	0.0	0.4841	0.0
2010-11-01 02:00:00	0.4614	0.0	0.4723	0.0000	0.4671	0.0000	0.5002	0.0000	0.4619	0.0000	...	0.5060	0.0	0.4827	0.0000	0.4987	0.0	0.5143	0.0	0.5084	0.0

3 rows × 84 columns

In [10]:

se_climate.tail(3)

se_climate.tail(3)

Out[10]:

	subcatchment.1.E	subcatchment.1.P	subcatchment.10.E	subcatchment.10.P	subcatchment.11.E	subcatchment.11.P	subcatchment.12.E	subcatchment.12.P	subcatchment.13.E	subcatchment.13.P	...	subcatchment.5.E	subcatchment.5.P	subcatchment.6.E	subcatchment.6.P	subcatchment.7.E	subcatchment.7.P	subcatchment.8.E	subcatchment.8.P	subcatchment.9.E	subcatchment.9.P
2010-11-20 21:00:00	0.1832	0.0	0.1885	0.0000	0.1865	0.0000	0.2004	0.0	0.1844	0.0	...	0.2047	0.0	0.1940	0.0	0.1988	0.0	0.2035	0.0	0.2040	0.0
2010-11-20 22:00:00	0.2809	0.0	0.2877	0.1014	0.2849	0.0289	0.3054	0.0	0.2814	0.0	...	0.3104	0.0	0.2961	0.0	0.3035	0.0	0.3105	0.0	0.3098	0.0
2010-11-20 23:00:00	0.3683	0.0	0.3762	0.2028	0.3727	0.0577	0.3990	0.0	0.3678	0.0	...	0.4044	0.0	0.3872	0.0	0.3968	0.0	0.4061	0.0	0.4041	0.0

3 rows × 84 columns

Base model creation¶

In [11]:

simulation = std.sample_catchment_model(site_id=site_id, config_id='catchment')
# simulation = swap_model(simulation, 'MuskingumNonLinear', 'channel_routing')
simulation = simulation.swap_model('LagAndRoute', 'channel_routing')

simulation = std.sample_catchment_model(site_id=site_id, config_id='catchment') # simulation = swap_model(simulation, 'MuskingumNonLinear', 'channel_routing') simulation = simulation.swap_model('LagAndRoute', 'channel_routing')

The names of the climate series is already set to the climate input identifiers of the model simulation, so setting them as inputs is easy:

In [12]:

simulation.play_input(se_climate)
simulation.set_simulation_span(xr_ts_start(se_climate), xr_ts_end(se_climate))
simulation.set_simulation_time_step('hourly')

simulation.play_input(se_climate) simulation.set_simulation_span(xr_ts_start(se_climate), xr_ts_end(se_climate)) simulation.set_simulation_time_step('hourly')

Moving on to define the parameters, free or fixed. We will use (for now - may change) the package calibragem, companion to SWIFT.

In [13]:

std.configure_hourly_gr4j(simulation)

std.configure_hourly_gr4j(simulation)

Parameterisation¶

We define a function creating a realistic feasible parameter space. The parameteriser is relatively sophisticated, but this is not the main purpose of this vignette, so we do not describe the process about defining and creating parameterisers in gread details.

In [14]:

from swift2.utils import c, paste0, rep
import swift2.parameteriser as sp
import swift2.helpers as hlp


def create_meta_parameteriser(simulation:Simulation, ref_area=250, time_span=3600):
    time_span = int(time_span)
    parameteriser = std.define_gr4j_scaled_parameter(ref_area, time_span)

    # Let's define _S0_ and _R0_ parameters such that for each GR4J model instance, _S = S0 * x1_ and _R = R0 * x3_
    p_states = sp.linear_parameteriser(
                      param_name=c("S0","R0"),
                      state_name=c("S","R"),
                      scaling_var_name=c("x1","x3"),
                      min_p_val=c(0.0,0.0),
                      max_p_val=c(1.0,1.0),
                      value=c(0.9,0.9),
                      selector_type='each subarea')

    init_parameteriser = p_states.make_state_init_parameteriser()
    parameteriser = sp.concatenate_parameterisers(parameteriser, init_parameteriser)

    hlp.lag_and_route_linear_storage_type(simulation)
    hlp.set_reach_lengths_lag_n_route(simulation)

    lnrp = hlp.parameteriser_lag_and_route()
    parameteriser = CompositeParameteriser.concatenate(parameteriser, lnrp, strategy='')
    return parameteriser

from swift2.utils import c, paste0, rep import swift2.parameteriser as sp import swift2.helpers as hlp def create_meta_parameteriser(simulation:Simulation, ref_area=250, time_span=3600): time_span = int(time_span) parameteriser = std.define_gr4j_scaled_parameter(ref_area, time_span) # Let's define _S0_ and _R0_ parameters such that for each GR4J model instance, _S = S0 * x1_ and _R = R0 * x3_ p_states = sp.linear_parameteriser( param_name=c("S0","R0"), state_name=c("S","R"), scaling_var_name=c("x1","x3"), min_p_val=c(0.0,0.0), max_p_val=c(1.0,1.0), value=c(0.9,0.9), selector_type='each subarea') init_parameteriser = p_states.make_state_init_parameteriser() parameteriser = sp.concatenate_parameterisers(parameteriser, init_parameteriser) hlp.lag_and_route_linear_storage_type(simulation) hlp.set_reach_lengths_lag_n_route(simulation) lnrp = hlp.parameteriser_lag_and_route() parameteriser = CompositeParameteriser.concatenate(parameteriser, lnrp, strategy='') return parameteriser

In [15]:

parameteriser = create_meta_parameteriser(simulation)

parameteriser = create_meta_parameteriser(simulation)

We have built a parameteriser for jointly parameterising:

• GR4J parameters in transformed spaces ($log$ and $asinh$)
• GR4J initial soil moisture store conditions ($S_0$ and $R_0$)
• A "lag and route" streamflow routing scheme in transform space.

There is even more happening there, because on top of GR4J parameter transformation we scale some in proportion to catchment area and time step length. But this is besides the point of this vignette: refer for instance to the vignette about tied parameters to know more about parameter transformation and composition of parameterisers.

In [16]:

parameteriser

parameteriser

Out[16]:

               Name     Value       Min         Max
0            log_x4  0.305422  0.000000    2.380211
1            log_x1  0.506690  0.000000    3.778151
2            log_x3  0.315425  0.000000    3.000000
3          asinh_x2  2.637752 -3.989327    3.989327
4                R0  0.900000  0.000000    1.000000
5                S0  0.900000  0.000000    1.000000
6             alpha  1.000000  0.001000  100.000000
7  inverse_velocity  1.000000  0.001000  100.000000

Let us check that we can apply the parameteriser and use its methods.

In [17]:

parameteriser.set_parameter_value('asinh_x2', 0)
parameteriser.apply_sys_config(simulation)
simulation.exec_simulation()

parameteriser.set_parameter_value('asinh_x2', 0) parameteriser.apply_sys_config(simulation) simulation.exec_simulation()

We are now ready to enter the main topic of this vignette, i.e. setting up a weighted multi-objective for calibration purposes.

Defining weighting multi-objectives¶

The sample gauge data flow contains gauge identifiers as column headers

In [18]:

se_flows.head()

se_flows.head()

Out[18]:

	3364	18311	25	181	93044	592002	92020	92091	92106
2010-11-01 00:00:00	1.753	0.755	1.229	11.705	10.65	0.897	0.8	8.51	9.2
2010-11-01 01:00:00	1.755	0.753	1.259	11.656	10.59	0.897	0.8	8.34	9.2
2010-11-01 02:00:00	1.746	0.743	1.280	11.606	10.56	0.897	0.8	8.00	9.2
2010-11-01 03:00:00	1.748	0.752	1.291	11.570	10.44	0.897	0.8	7.96	9.2
2010-11-01 04:00:00	1.735	0.737	1.296	11.528	10.35	0.897	0.8	7.96	9.2

The network of nodes of the simulation is arbitrarily identified with nodes '1' to '43'

In [19]:

simulation.describe()["nodes"].keys()

simulation.describe()["nodes"].keys()

Out[19]:

dict_keys(['1', '2', '3', '4', '5', '6', '7', '8', '9', '10', '11', '12', '13', '14', '15', '16', '17', '18', '19', '20', '21', '22', '23', '24', '25', '26', '27', '28', '29', '30', '31', '32', '33', '34', '35', '36', '37', '38', '39', '40', '41', '42', '43'])

We "know" that we can associate the node identifiers 'node.{i}' with gauge identifiers (note to doc maintainers: manually extracted from legacy swiftv1 NodeLink files)

In [20]:

gauges = c( '92106', '592002', '18311', '93044',    '25',   '181')
node_ids = paste0('node.', c('7',   '12',   '25',   '30',   '40',   '43'))
# names(gauges) = node_ids

gauges = c( '92106', '592002', '18311', '93044', '25', '181') node_ids = paste0('node.', c('7', '12', '25', '30', '40', '43')) # names(gauges) = node_ids

First, let us try the Nash Sutcliffe efficiency, for simplicity (no additional parameters needed). We will set up NSE calculations at two points (nodes) in the catchments. Any model state from a link, node or subarea could be a point for statistics calculation.

The function multi_statistic_definition in the module swift2.statistics is used to create multisite multiobjective definitions.

In [21]:

import swift2.statistics as ssf

import swift2.statistics as ssf

In [22]:

ssf.multi_statistic_definition?

ssf.multi_statistic_definition?

In [23]:

span = simulation.get_simulation_span()
span

span = simulation.get_simulation_span() span

Out[23]:

{'start': datetime.datetime(2010, 11, 1, 0, 0),
 'end': datetime.datetime(2010, 11, 20, 23, 0),
 'time step': 'hourly'}

In [24]:

s = span['start']
e = span['end']

s = span['start'] e = span['end']

In [25]:

calibration_points = node_ids[:2]
mvids = mk_full_data_id(calibration_points, 'OutflowRate')
mvids

calibration_points = node_ids[:2] mvids = mk_full_data_id(calibration_points, 'OutflowRate') mvids

Out[25]:

['node.7.OutflowRate', 'node.12.OutflowRate']

In [26]:

statspec = ssf.multi_statistic_definition(
  model_var_ids = mvids,
  statistic_ids = rep('nse', 2),
  objective_ids = calibration_points,
  objective_names = paste0("NSE-", calibration_points),
  starts = [s, s + pd.DateOffset(hours=3)],
  ends =  [e + pd.DateOffset(hours=-4), e + pd.DateOffset(hours=-2)])

statspec = ssf.multi_statistic_definition( model_var_ids = mvids, statistic_ids = rep('nse', 2), objective_ids = calibration_points, objective_names = paste0("NSE-", calibration_points), starts = [s, s + pd.DateOffset(hours=3)], ends = [e + pd.DateOffset(hours=-4), e + pd.DateOffset(hours=-2)])

We now have our set of statistics defined:

In [27]:

statspec

statspec

Out[27]:

	ModelVarId	StatisticId	ObjectiveId	ObjectiveName	Start	End
0	node.7.OutflowRate	nse	node.7	NSE-node.7	2010-11-01 00:00:00	2010-11-20 19:00:00
1	node.12.OutflowRate	nse	node.12	NSE-node.12	2010-11-01 03:00:00	2010-11-20 21:00:00

To create a multisite objective evaluator we need to use the create_multisite_objective method of the simulation object. We have out statistics defined. The method requires observations and weights to give to combine statistics to a single objective.

In [28]:

simulation.create_multisite_objective?

simulation.create_multisite_objective?

In [29]:

observations = [
  se_flows[gauges[0]],
  se_flows[gauges[1]]
]

observations = [ se_flows[gauges[0]], se_flows[gauges[1]] ]

In [30]:

w = {mvids[0]: 1.0, mvids[1]: 2.0} # weights (internally normalised to a total of 1.0)
w

w = {mvids[0]: 1.0, mvids[1]: 2.0} # weights (internally normalised to a total of 1.0) w

Out[30]:

{'node.7.OutflowRate': 1.0, 'node.12.OutflowRate': 2.0}

In [31]:

moe = simulation.create_multisite_objective(statspec, observations, w)
moe.get_score(parameteriser)

moe = simulation.create_multisite_objective(statspec, observations, w) moe.get_score(parameteriser)

Out[31]:

{'scores': {'MultisiteObjectives': 290.33738106858823},
 'sysconfig':                Name     Value       Min         Max
 0            log_x4  0.305422  0.000000    2.380211
 1            log_x1  0.506690  0.000000    3.778151
 2            log_x3  0.315425  0.000000    3.000000
 3          asinh_x2  0.000000 -3.989327    3.989327
 4                R0  0.900000  0.000000    1.000000
 5                S0  0.900000  0.000000    1.000000
 6             alpha  1.000000  0.001000  100.000000
 7  inverse_velocity  1.000000  0.001000  100.000000}

We can get the value of each objective. The two NSE scores below are negative. Note above that the composite objective is positive, i.e. the opposite of the weighted average. This is because the composite objective is always minimisable (as of writing anyway this is a design choice.)

In [32]:

moe.get_scores(parameteriser)

moe.get_scores(parameteriser)

Out[32]:

{'node.12': -347.3329926657439, 'node.7': -176.3461578742768}

log-likelihood multiple objective¶

Now, let's move on to use log-likelihood instead of NSE. This adds one level of complexity compared to the above. Besides calibrating the hydrologic parameters of GR4J and flow routing, with the Log-Likelihood we introduce a set of parameters $(a, b, m, s, ...)$ for each calibration point. The statistic definition is similar and still straightforward

In [33]:

statspec = ssf.multi_statistic_definition(
  model_var_ids = mvids,
  statistic_ids = rep('log-likelihood', 2),
  objective_ids=calibration_points,
  objective_names = paste0("LL-", calibration_points),
  starts = rep(span['start'], 2),
  ends = rep(span['end'], 2) )

statspec

statspec = ssf.multi_statistic_definition( model_var_ids = mvids, statistic_ids = rep('log-likelihood', 2), objective_ids=calibration_points, objective_names = paste0("LL-", calibration_points), starts = rep(span['start'], 2), ends = rep(span['end'], 2) ) statspec

Out[33]:

	ModelVarId	StatisticId	ObjectiveId	ObjectiveName	Start	End
0	node.7.OutflowRate	log-likelihood	node.7	LL-node.7	2010-11-01	2010-11-20 23:00:00
1	node.12.OutflowRate	log-likelihood	node.12	LL-node.12	2010-11-01	2010-11-20 23:00:00

But while we can create the calculator, we cannot evaluate it against the sole hydrologic parameters defined in the previous section

In [34]:

obj = simulation.create_multisite_objective(statspec, observations, w)
### This cannot work if the statistic is the log-likelihood:
# obj.get_scores(fp)

obj = simulation.create_multisite_objective(statspec, observations, w) ### This cannot work if the statistic is the log-likelihood: # obj.get_scores(fp)

If we try to do the above we would end up with an error message 'Mandatory key expected in the dictionary but not found: b'

For this to work we need to include parameters

In [35]:

maxobs = np.max(observations[0].values) # NOTE: np.nan??
censor_threshold = 0.01
censopt = 0.0
calc_m_and_s = 1.0 # i.e. TRUE

#		const string LogLikelihoodKeys::KeyAugmentSimulation = "augment_simulation";
#		const string LogLikelihoodKeys::KeyExcludeAtTMinusOne = "exclude_t_min_one";
#		const string LogLikelihoodKeys::KeyCalculateModelledMAndS = "calc_mod_m_s";
#		const string LogLikelihoodKeys::KeyMParMod = "m_par_mod";
#		const string LogLikelihoodKeys::KeySParMod = "s_par_mod";

p = sp.create_parameteriser('no apply')
# Note: exampleParameterizer is also available
p.add_to_hypercube(
          pd.DataFrame.from_dict( dict(Name=c('b','m','s','a','maxobs','ct', 'censopt', 'calc_mod_m_s'),
          Min   = c(-30, 0, 1,    -30, maxobs, censor_threshold, censopt, calc_m_and_s),
          Max   = c(0,   0, 1000, 1, maxobs, censor_threshold, censopt, calc_m_and_s),
          Value = c(-7,  0, 100,  -10, maxobs, censor_threshold, censopt, calc_m_and_s)) ))

p.as_dataframe()

maxobs = np.max(observations[0].values) # NOTE: np.nan?? censor_threshold = 0.01 censopt = 0.0 calc_m_and_s = 1.0 # i.e. TRUE # const string LogLikelihoodKeys::KeyAugmentSimulation = "augment_simulation"; # const string LogLikelihoodKeys::KeyExcludeAtTMinusOne = "exclude_t_min_one"; # const string LogLikelihoodKeys::KeyCalculateModelledMAndS = "calc_mod_m_s"; # const string LogLikelihoodKeys::KeyMParMod = "m_par_mod"; # const string LogLikelihoodKeys::KeySParMod = "s_par_mod"; p = sp.create_parameteriser('no apply') # Note: exampleParameterizer is also available p.add_to_hypercube( pd.DataFrame.from_dict( dict(Name=c('b','m','s','a','maxobs','ct', 'censopt', 'calc_mod_m_s'), Min = c(-30, 0, 1, -30, maxobs, censor_threshold, censopt, calc_m_and_s), Max = c(0, 0, 1000, 1, maxobs, censor_threshold, censopt, calc_m_and_s), Value = c(-7, 0, 100, -10, maxobs, censor_threshold, censopt, calc_m_and_s)) )) p.as_dataframe()

Out[35]:

	Name	Value	Min	Max
0	b	-7.00	-30.00	0.00
1	m	0.00	0.00	0.00
2	s	100.00	1.00	1000.00
3	a	-10.00	-30.00	1.00
4	maxobs	22.00	22.00	22.00
5	ct	0.01	0.01	0.01
6	censopt	0.00	0.00	0.00
7	calc_mod_m_s	1.00	1.00	1.00

In [36]:

func_parameterisers = [p, p.clone()] # for the two calib points, NSE has no param here
catchment_pzer = parameteriser
fp = sp.create_multisite_obj_parameteriser(func_parameterisers, calibration_points, prefixes=paste0(calibration_points, '.'), mix_func_parameteriser=None, hydro_parameteriser=catchment_pzer)
fp.as_dataframe()

func_parameterisers = [p, p.clone()] # for the two calib points, NSE has no param here catchment_pzer = parameteriser fp = sp.create_multisite_obj_parameteriser(func_parameterisers, calibration_points, prefixes=paste0(calibration_points, '.'), mix_func_parameteriser=None, hydro_parameteriser=catchment_pzer) fp.as_dataframe()

Out[36]:

	Name	Value	Min	Max
0	log_x4	0.305422	0.000000	2.380211
1	log_x1	0.506690	0.000000	3.778151
2	log_x3	0.315425	0.000000	3.000000
3	asinh_x2	0.000000	-3.989327	3.989327
4	R0	0.900000	0.000000	1.000000
5	S0	0.900000	0.000000	1.000000
6	alpha	1.000000	0.001000	100.000000
7	inverse_velocity	1.000000	0.001000	100.000000
8	node.7.b	-7.000000	-30.000000	0.000000
9	node.7.m	0.000000	0.000000	0.000000
10	node.7.s	100.000000	1.000000	1000.000000
11	node.7.a	-10.000000	-30.000000	1.000000
12	node.7.maxobs	22.000000	22.000000	22.000000
13	node.7.ct	0.010000	0.010000	0.010000
14	node.7.censopt	0.000000	0.000000	0.000000
15	node.7.calc_mod_m_s	1.000000	1.000000	1.000000
16	node.12.b	-7.000000	-30.000000	0.000000
17	node.12.m	0.000000	0.000000	0.000000
18	node.12.s	100.000000	1.000000	1000.000000
19	node.12.a	-10.000000	-30.000000	1.000000
20	node.12.maxobs	22.000000	22.000000	22.000000
21	node.12.ct	0.010000	0.010000	0.010000
22	node.12.censopt	0.000000	0.000000	0.000000
23	node.12.calc_mod_m_s	1.000000	1.000000	1.000000

In [37]:

moe = obj

moe = obj

To get the overall weighted multiobjective score (for which lower is better)

In [38]:

moe.get_score(fp)

moe.get_score(fp)

Out[38]:

{'scores': {'MultisiteObjectives': 45093.298747974426},
 'sysconfig':                     Name       Value        Min          Max
 0                 log_x4    0.305422   0.000000     2.380211
 1                 log_x1    0.506690   0.000000     3.778151
 2                 log_x3    0.315425   0.000000     3.000000
 3               asinh_x2    0.000000  -3.989327     3.989327
 4                     R0    0.900000   0.000000     1.000000
 5                     S0    0.900000   0.000000     1.000000
 6                  alpha    1.000000   0.001000   100.000000
 7       inverse_velocity    1.000000   0.001000   100.000000
 8               node.7.b   -7.000000 -30.000000     0.000000
 9               node.7.m    0.000000   0.000000     0.000000
 10              node.7.s  100.000000   1.000000  1000.000000
 11              node.7.a  -10.000000 -30.000000     1.000000
 12         node.7.maxobs   22.000000  22.000000    22.000000
 13             node.7.ct    0.010000   0.010000     0.010000
 14        node.7.censopt    0.000000   0.000000     0.000000
 15   node.7.calc_mod_m_s    1.000000   1.000000     1.000000
 16             node.12.b   -7.000000 -30.000000     0.000000
 17             node.12.m    0.000000   0.000000     0.000000
 18             node.12.s  100.000000   1.000000  1000.000000
 19             node.12.a  -10.000000 -30.000000     1.000000
 20        node.12.maxobs   22.000000  22.000000    22.000000
 21            node.12.ct    0.010000   0.010000     0.010000
 22       node.12.censopt    0.000000   0.000000     0.000000
 23  node.12.calc_mod_m_s    1.000000   1.000000     1.000000}

To get each individual log-likelihood scores for each gauge:

In [39]:

moe.get_scores(fp)

moe.get_scores(fp)

Out[39]:

{'node.12': -44776.75651455558, 'node.7': -45726.383214812144}

In [ ]:
